Footprint of a cube: square (horizontal, vertical, diagonal)

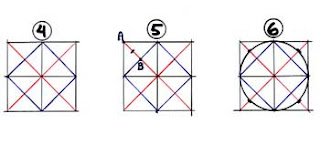

Circle in a square

Cylinder

Cone

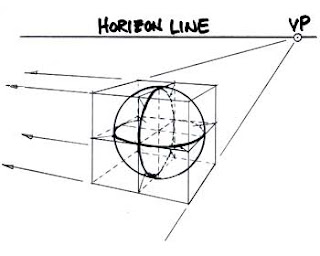

Sphere

Block

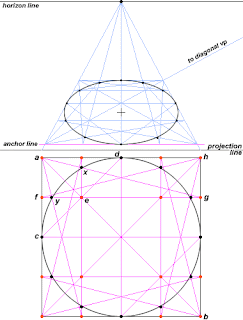

Circle to ellipse

View change (horizon shift)

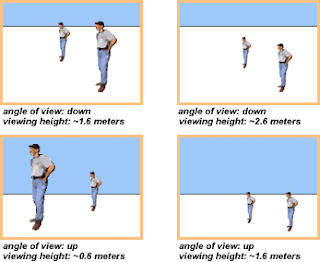

View change (angle shift)

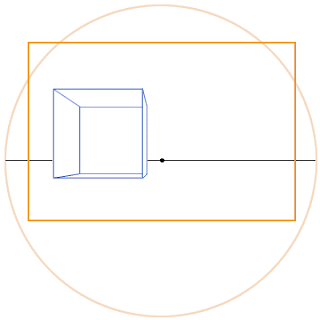

ONE point perspective

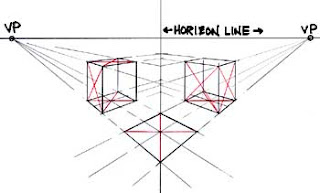

TWO point perspective

THREE point perspective

Perfect Square in 1Pt. Perspective

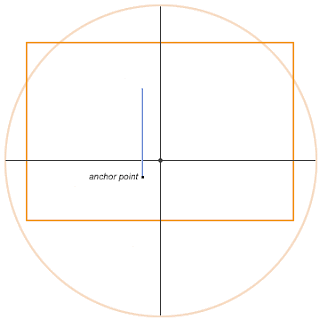

Step 1: Anchor Point

Step Two: Face of rectangle

Step three: Diagonals

Step four: Finish

Two point perspective

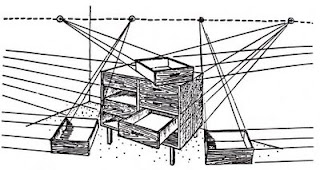

One horizon and many sets of lines (which in reality are parallel) going in different directions - each converging at uniquevanishing points.

Albrecht Altdorfer.

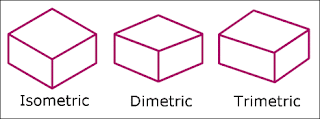

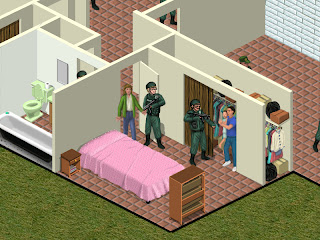

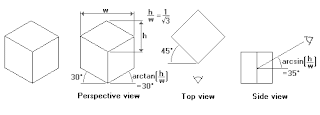

*Isometric is a term that refers to an orthographic view of a cube where all angles of view are 45° three sides of the cube are equally visible.

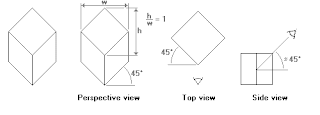

*Dimetric is a term that describes an orthographic projection of a cube where any two angles of view are the same (not necessarily 45°) as each other.

*Trimetric is a term that describes an orthographic projection of a cube where none of the three angles of view are the same.

Varied Perspectives:

One of a pair of six-panel rakuchû rakugai zu byôbu, known as the Funaki screens, 1614-15. Ink and color with gold leaf on paper, each screen 162 x 340 cm. Tokyo National Museum.

Circle in a square

Cylinder

Cone

Sphere

Block

Circle to ellipse

View change (horizon shift)

View change (angle shift)

ONE point perspective

TWO point perspective

THREE point perspective

Perfect Square in 1Pt. Perspective

Step 1: Anchor Point

Step Two: Face of rectangle

Step three: Diagonals

Step four: Finish

Two point perspective

One horizon and many sets of lines (which in reality are parallel) going in different directions - each converging at uniquevanishing points.

Albrecht Altdorfer.

*The Battle of Issus*, 1529. Oil on wood, 52 1/4" x 47 1/4".*Isometric is a term that refers to an orthographic view of a cube where all angles of view are 45° three sides of the cube are equally visible.

*Dimetric is a term that describes an orthographic projection of a cube where any two angles of view are the same (not necessarily 45°) as each other.

*Trimetric is a term that describes an orthographic projection of a cube where none of the three angles of view are the same.

Varied Perspectives:

One of a pair of six-panel rakuchû rakugai zu byôbu, known as the Funaki screens, 1614-15. Ink and color with gold leaf on paper, each screen 162 x 340 cm. Tokyo National Museum.
